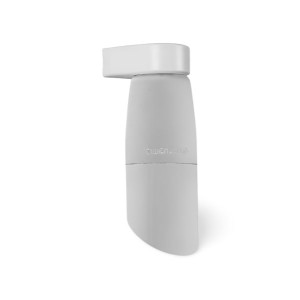

SENTINEL-WM Wall Mounted Fixed-Position Spotlight

SENTINEL-WM Wall Mounted Fixed-Position Spotlight

SKU:
SENTINEL-WM
Availability:
Finishes 3, 4, 10, 11, 12, 13, 29, 30

Log in for pricing

The SENTINEL-WM, a fixed-position wall-mounted spotlight includes a 4W-60° MR16 LED and a 15ft MAX FLEX™ Wire Lead. With its patented rotational hex louver, it offers precise glare control. This fixture is compatible with Short-Shroud and can be arranged for Up/Down lighting when configured as a sconce. It’s ideal for highlighting corners, creating graze lighting, showcasing textured surfaces, and illuminating areas under eaves.
Current Stock:
Description

SENTINEL-WM

Fixed-Position Wall-Mounted Spotlight

The SENTINEL-WM is a fixed-position spotlight built for surface-mounted applications where precision and durability are essential. Featuring a pre-lamped 4W True Color MR16 LED with a 60° beam angle, this fixture delivers clean, wide coverage ideal for highlighting textured walls, architectural corners, under-eave lighting, and more. The SENTINEL-WM comes standard with a 15' Straight Lead of 18/2 MAX FLEX™ Wire, allowing for straightforward installation.

Equipped with a 360° Rotational Hex Louver, the SENTINEL-WM offers refined glare control while maintaining maximum beam performance. Part of its housing includes a rotatable shroud for exact light positioning, and the fixture can be easily adapted with optional accessories such as the Short-Shroud for a compact, streamlined look.

The patented M1-WM Wall Mount (U.S. Patent No. 10,900,624) allows for secure attachment to any flat vertical surface and can support up to two fixtures—making it possible to convert the SENTINEL-WM into an elegant Up/Down Wall Sconce configuration.

Please note: This is a fixed-position fixture and does not include a knuckle or lens.

Key Features

  • Wall-mounted design using the patented M1-WM bracket

  • Fixed-position spotlight for directional lighting

  • Pre-lamped with 4W-60° True Color MR16 LED

  • Includes 15' Straight Lead of 18/2 MAX FLEX™ Wire

  • 360° Rotational Hex Louver for glare control (U.S. Patent No. D925,111)

  • Adjustable shroud for directional beam alignment

  • Compatible with Short-Shroud for compact applications

  • Capable of Up/Down Sconce configuration using two fixtures

  • Made in the USA

  • Does not include a lens or knuckle







Additional Information
Mounting:
M1-WM Wall Mount (U.S. Patent No. 10,900,624)
Adjustability:
Fixed-position (no knuckle)
Glare Control:
360° Rotational Hex Louver (U.S. Patent No. D925,111)
Field-Serviceable:
100% repairable components
Thermal Management:
4-Position Lamp Holder
Directional Beam Alignment:
Adjustable glare shield w/ 4 Keyway locks
Lens:
None
Material:
Advanced Composite, Brass, Copper
Finish:
White, Black, Metallic Pearl Thrucolor, Natural Brass, and Natural Copper
Light Source:
MR16 LED
LED Lamp Size (Watts):
4W
LED Beam Angle:
60° Flood
LED Color:
True Color (TC)
Voltage:
12V, Vari-Volt
Wire Lead:
15ft of 18/2 (UV Stabilized, 99.9% Virgin Copper Wire, Dual Color)
US Patents:
D925,111 - 10,900,624
